• Guaranteed brand power performance and low energy consumption
• Imported heavy-duty air filter, double filtering effect
• Humanized control system is easy to operate
• Intelligent control can realize remote start and stop
• Optional engine low temperature light load start
For details, please leave a message online or call
Product Parameters

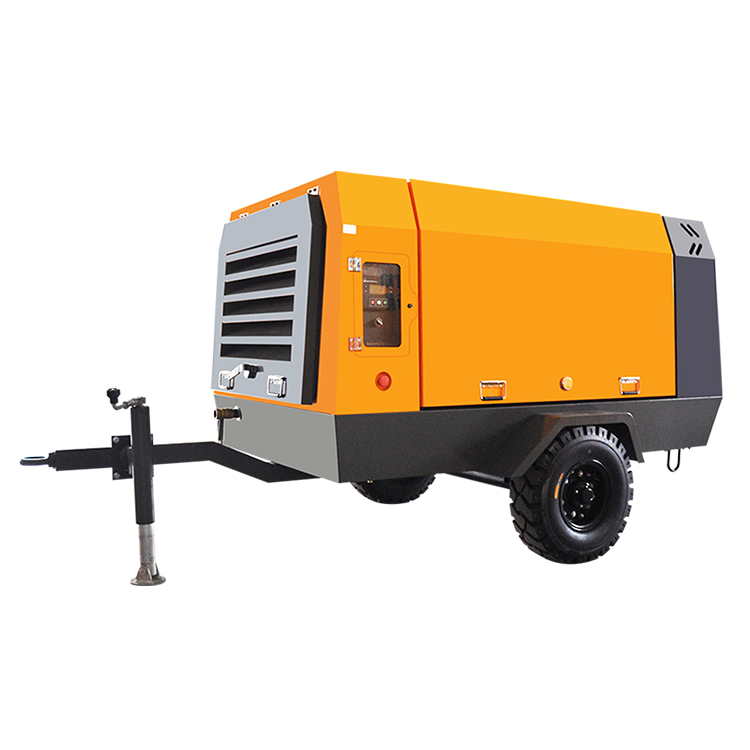

SDF two-stage compression diesel fixed screw machine
|
Model |
SDP185 |
SDP250E |
SDP350E |
SDP350G |
SDP420E |
SDP460G |
SDP530G |
SDP560GII |
SDP600HII |
SDP550G |
SDP750G |
SDP740J |
|
|
Discharge air volume(m3/min) |
5 |
7 |
10 |
10 |
12 |
13 |
15 |
16 |
17 |
16 |
21 |
20 |
|
|
Dischage pressure（(MPa)） |
0.7 |
0.8 |
0.8 |
1.3 |
0.8 |
1.3 |
1.3 |
1.3 |
1.7 |
1.4 |
1.3 |
2.1 |
|
|
Gas/oil content（PPM） |
≤5 |
||||||||||||
|
Discharge Pipc. Dia. |
1×11/4" |
1×3/4" 1×11/2" |
1×2" |
||||||||||
|
Discharge temperature |
≤110 |
||||||||||||
|
Unit drive way |
Direct Driven |
||||||||||||
|
Diesel engine parameters |
Model |
V2403-T |
YC4DK95-H300 |
WP4.1G140E331 |
WP4G160E331 |
QSB5.9-C180 |
WP4G160E331 |
WP6G240E330 |
TAD552VE |
QSB8.3-C260 |
YC6L310-H300 |
||
|
Power(KW) |
33 |
70 |
103 |
118 |
132 |
118 |
176 |
160 |
194 |
220 |
|||
|
Speed(r/min) |
2000 |
2300 |
2000 |
2300 |
2300 |
2200 |
2300 |
2100 |
1800 |
2100 |
1800 |
||
|
Displacement(L) |
2.6 |
3.621 |
4.088 |
4.5 |
5.9 |
4.5 |
6.75 |
5.1 |
8.3 |
8.42 |
|||
|
Dimension |
Overall Length（mm） |
3840 |
3170 |
3700 |
3700 |
4300 |
3900 |
4400 |
4300 |
4600 |
4160 |
||
|
W/O Towbar（mm） |
2100 |
2250 |
2500 |
2500 |
3100 |
2900 |
3300 |
3100 |
3250 |
3950 |
|||
|
width（mm） |
1490 |
1600 |
1960 |
1960 |
2020 |
1900 |
1900 |
1900 |
2100 |
1965 |
|||
|
height（mm） |
1633 |
1650 |
2000 |
2000 |
2200 |
2100 |
2100 |
2200 |
2500 |
2400 |
|||
|
Unit weight（Kg） |
1300 |
1650 |
2000 |
2200 |
2800 |
2650 |
2610 |
3000 |
2710 |
4110 |
4700 |
||
