Exceeding the first level energy efficiency standard, permanent magnet synchronization will reduce the loss and save energy
The host adopts two-stage compression, with low compression ratio, high compression efficiency and larger air volume
Compared with single-stage compression, it can achieve energy-saving effect of more than 15%
Intelligent control system with RS485 interface reserved for remote control
Dual frequency conversion control system, current vector control algorithm, high control accuracy
Sealed centrifugal cooling, better cooling effect
Independent air intake system ensures constant temperature of air intake
For details, please leave a message online or call
Product Parameters

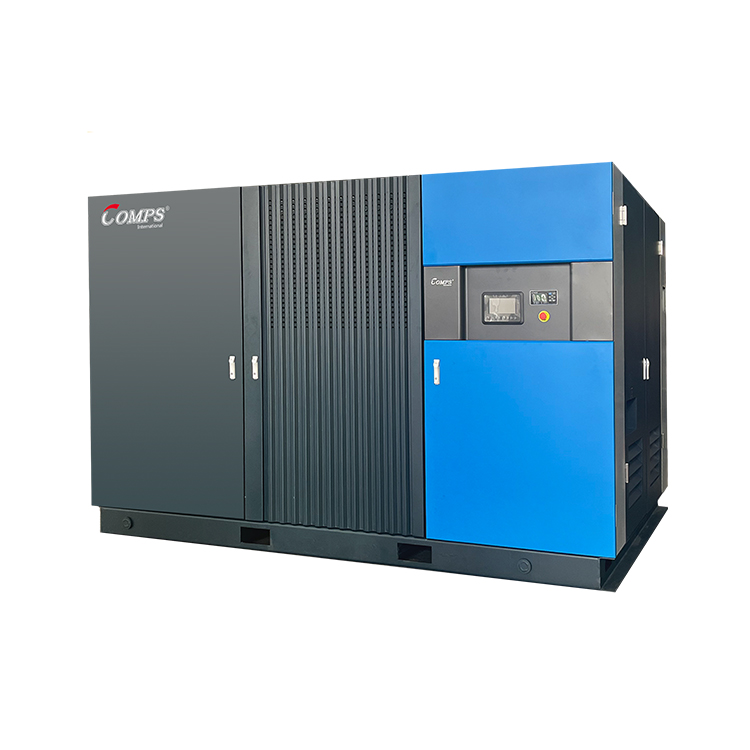

SPM-II Two-Stage Compression Permanent Magnet Variable Frequency Screw Compressor
|
Model |
Exhaust pressure MPa |
Displacement m³/min |
Motor power kW |
External dimensions |
Outlet size |
Crew weight kg |
|
SPM830Ⅱ |
0.8 |
26.5 |
132 |
2480×1570×1910 |
DN65 |
3500 |
|
1.0 |
23.0 |
|||||
|
1.3 |
20.5 |
|||||
|
SPM1115Ⅱ |
0.8 |
32.5 |
160 |
3420×2220×2130 |
DN80 |
3950 |
|
1.0 |
30.0 |
|||||
|
1.3 |
26.0 |
|||||
|
SPM1235Ⅱ |
0.8 |
38.0 |
185 |
3420×2220×2130 |
DN80 |
4100 |
|
1.0 |
33.0 |
|||||
|
1.3 |
29.0 |
|||||
|
SPM1430ZII |
0.8 |
40.5 |
200 |
3530×2380×2300 |
DN80 |
4850 |
|
1.0 |
35.0 |
|||||
|
1.3 |
31.0 |
|||||
|
SPM1555ZII |
0.8 |
45.0 |
220 |
3530×2380×2300 |
DN100 |
5500 |
|
1.0 |
39.0 |
|||||
|
1.3 |
34.5 |
|||||
|
SPM1800ZII |
0.8 |
52.0 |
250 |
3530×2380×2300 |
DN100 |
5600 |
|
1.0 |
45.0 |
|||||
|
1.3 |
41.0 |
|||||
|
SPM1945ZII |
0.8 |
56.0 |
280 |
3970×2340×2550 |
DN125 |
7200 |
|
1.0 |
50.0 |
|||||
|
1.3 |
43.5 |
|||||
|
SPM2190ZII |
0.8 |
61.0 |
315 |
4200×2380×2550 |
DN125 |
7800 |
|
1.0 |
53.5 |
|||||
|
1.3 |
47.6 |
|||||
|
SPM2580WZII |
0.8 |
73.0 |
355 |
4200×2350×2450 |
DN125 |
9600 |
|
SPM2800WZII |
0.8 |
82.0 |
400 |
4200×2350×2450 |
DN125 |
10200 |
| SPM3050ZII | 0.9 | 86.5 | 500 | 4500×2500×2600 | DN125 | 10500 |
Note: The last letter in the model number is "II," indicating secondary compression. These specifications are for reference only; any changes will be made without prior notice.
Note: "II" indicates two-stage compression. For reference only; subject to change without notice.
